VIASURE V-Flex 8 Channels

VIASURE V-Flex 8 Channels

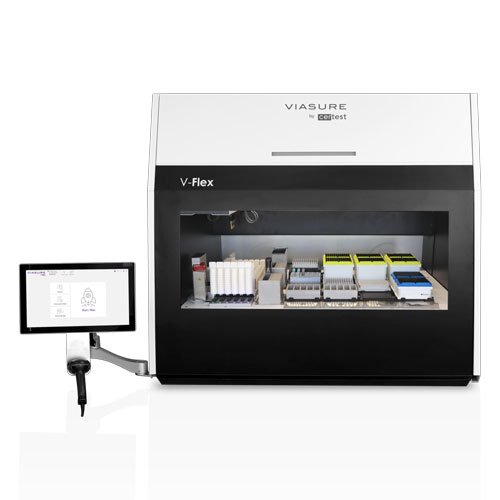

The VIASURE V-Flex is a fully automated platform for nucleic acid extraction, purification, and PCR setup from biological samples. Built on Tecan's Cavro® Magni Flex technology, the system features eight independently movable channels that provide exceptional flexibility and throughput for molecular diagnostic laboratories.

Key Features

• Fully automated nucleic acid extraction, purification, and PCR setup
• 8 independently movable channels for maximum flexibility
• Process up to 96 samples per run
• Gripper arm for automated plate movement
• Compatible with multiple sample types and tube formats
• Integrated ThermoShaker for heating and stirring
• Magnetized block for washing and elution stages
• Intuitive Tecan MAPlinx™ Software
• Real-time remote troubleshooting capability

System Flexibility

The V-Flex platform is designed to accommodate diverse laboratory needs:

• Process different clinical sample types simultaneously
• Run different diagnostic kits on the same processing plate
• Adaptable to varying workload volumes
• 96-well format compatible with standard laboratory workflows
• No fixed sample number requirements
• Optimized for both high and low throughput laboratories

Applications

The V-Flex system supports a wide range of molecular diagnostic applications:

• Respiratory virus detection (including SARS-CoV-2, Influenza, RSV)
• Gastrointestinal pathogen identification
• Sexually transmitted infection testing
• Tropical disease diagnostics
• Bacterial and fungal detection
• Multi-parameter clinical testing

Technical Specifications

• Channels: 8 independently movable pipetting channels
• Sample capacity: Up to 96 samples per run
• Format: 96-well plate processing
• Extraction method: Magnetic bead-based
• Automation level: Fully automated extraction and PCR setup
• Sample types: Swabs, saliva, sputum, bronchoalveolar lavages, feces, urine, blood samples
• Software: Tecan MAPlinx™ with remote support capability

Workflow Integration

The V-Flex is part of the VIASURE Complete Solution and integrates seamlessly with:

• VIASURE DNA/RNA Pathogen Extraction Kits (optimized for V-Flex)
• VIASURE V-Lab 96 Real-Time PCR System
• VIASURE RT-PCR Detection Kits
• VIASURE V-Smart analysis software

Benefits

• Significantly reduced hands-on time
• Improved reproducibility through automation
• Reduced time to results
• Increased number of parameters analyzed
• Minimized risk of cross-contamination
• Enhanced laboratory efficiency
• Scalable solution for growing laboratory needs

The VIASURE V-Flex represents a collaborative achievement between Certest Biotec and Tecan, delivering a flexible automation solution designed specifically for the diverse needs of modern molecular diagnostic laboratories.

For more information about VIASURE V-Flex, please visit the Certest Biotec website.
